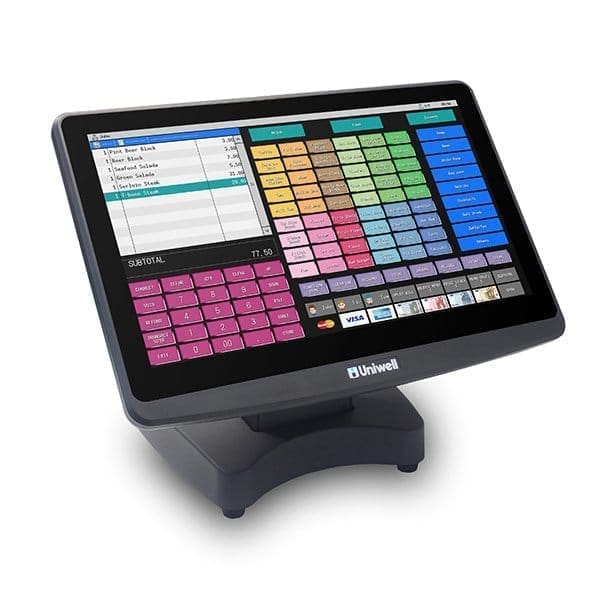

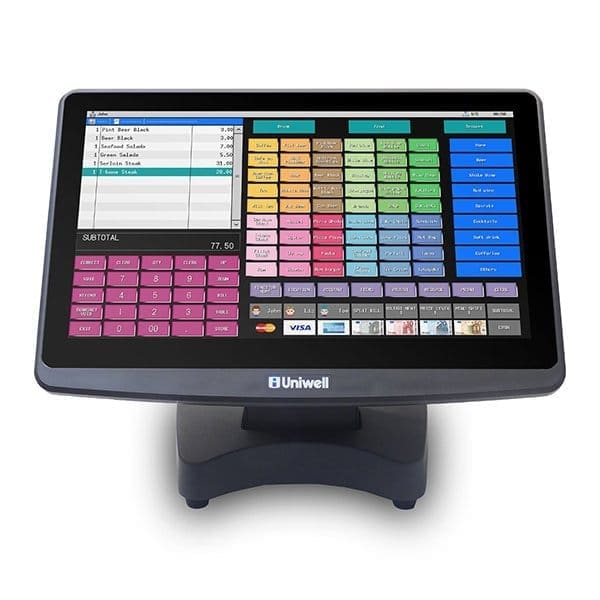

Uniwell HX-5500

The new Uniwell HX-5500 is the latest addition to our popular HX series of POS terminals, designed to empower your business with technology based on Uniwell’s 40 years of POS development experience.

Compact design
Designed thinner, lighter and simpler than ever!

New capacitive touch Panel 15.6”
Bezel free capacitive touch screen with anti-glare surface.

Fully compatible with other HX-series
Robust and trustable as before.

Find out more

Contact Us

Complete the form below and we'll be in touch to discuss further.

The Uniwell HX-5500 has the features/capabilities of PC POS architecture, all-in-one embedded POS terminal offering superior reliability and security.

Proprietary software and hardware with solid-state technology (No moving parts, No Hard Disk, No fan) offers reliability and stability not found in a PC system.
Advantages of Embedded POS:- HX-5500 offers speedy operation as well as instant power on/off without waiting for some minutes for OS to boot/finish, Robust system secure from virus attack and hacking, No aged deterioration of machine performance - Everlasting quick and light performance as good as new, swift and stress-free support by Remote Access/Remote Maintenance function.

You will enjoy easier and precise operation with the newly mounted capacitive panel with anti-glare surface which does not react with foreign substance like water drop or insects; also less eye tiredness from long time operation.

Feel the innovation of the HX-5500 - its slim and compact design with 15.6 wide Display and high quality software within.

Hardware features
15.6″ bezel-free and true-flat touch screen display with enhanced waterproof performance
Capacitive touch screen with superior durability
Graphic LCD Customer Display support
More Internal Memory
CashGuard interface (cash recycle/cash dispenser)
Caller ID interface (telephone ordering system)
Portable storage devices (USB memory etc..)
Table Manage
Table management
Table tracking with floating track capability
Extensive Condiments
Cooking instruction features
Handwritten cooking message
Powerful Kitchen printing facilities
Split bill by item or persons
Checkout bill
Deposit Book
QSR and fast food
Customized receipt
Extensive Toppings
Take out/eat-in system with combo menu
Drive through
Web ordering system
Retail
Various promotion types;
Mix and Match, Meal Deal, Coupon, etc.
Stock control
Weight/Price embedded barcode and source marking code
Customer Loyalty Customer management
Room/Loyalty
Mifare card (RFID card) Customer Loyalty
Others
Remote Access/Remote Maintenance
Flexible/Various Reports
And more!

Interfaces

Port	Cable	For
ETHERNET	LAN	PC (Back office) FTP comm. with PC (Report, Program maintenance, Firmware update) UDP data streaming (Journal data monitoring and analysis) Internet (Head office, Web ordering) Remote access/Remote maintenance Ethernet IRC (max 32 units) (Floating Track, IRC report, Program download, etc.) Kitchen/Receipt printer (shared max 20 units) Kitchen video system EFT terminal External loyalty
COM 1-4	RS232C	PC (real time data streaming) Printer (kitchen, receipt, slip) Caller ID EFT terminal NFC terminal 2 line customer display/customer LCD Barcode scanner Journal data transfer Room transfer Coin note recycler Drink dispenser etc.
USB x5	USB	PC keyboard Mouse Barcode scanner USB memory LCD graphic customer display RFID reader Biometric scanner (Finger print reader)
micro SD Card		Data backup Control data and graphic image for ”LCD graphic customer display”
Drawer1&2	Rj11	24V ports for upto two drawers with open sensor
